Powerful M XR 4-cylinder based on the RR engine. Even more peak power, higher torque and increased thrust and traction thanks to shorter secondary and gear ratios for maximum riding pleasure on country roads and race tracks.

The new M XR features a modified water-cooled 4-cylinder in-line engine based on the power unit of the S 1000 RR. Its peak power is 148 kW (201 hp) at 12,750 rpm, 23 kW (31 hp) more than in the new S 1000 XR. The maximum torque of 113 Nm is reached at 11,000 rpm. The maximum engine speed of the M XR is 14,600 rpm. Increased rear wheel pulling power in all gears is also provided by a shorter secondary gear ratio through the use of a sprocket with now 47 teeth (S 1000 XR: 45 teeth). In addition, the gear ratios of the 4th, 5th and 6th gear are now shorter compared to the S 1000 XR, which also benefits traction at the rear wheel, acceleration and pulling power.

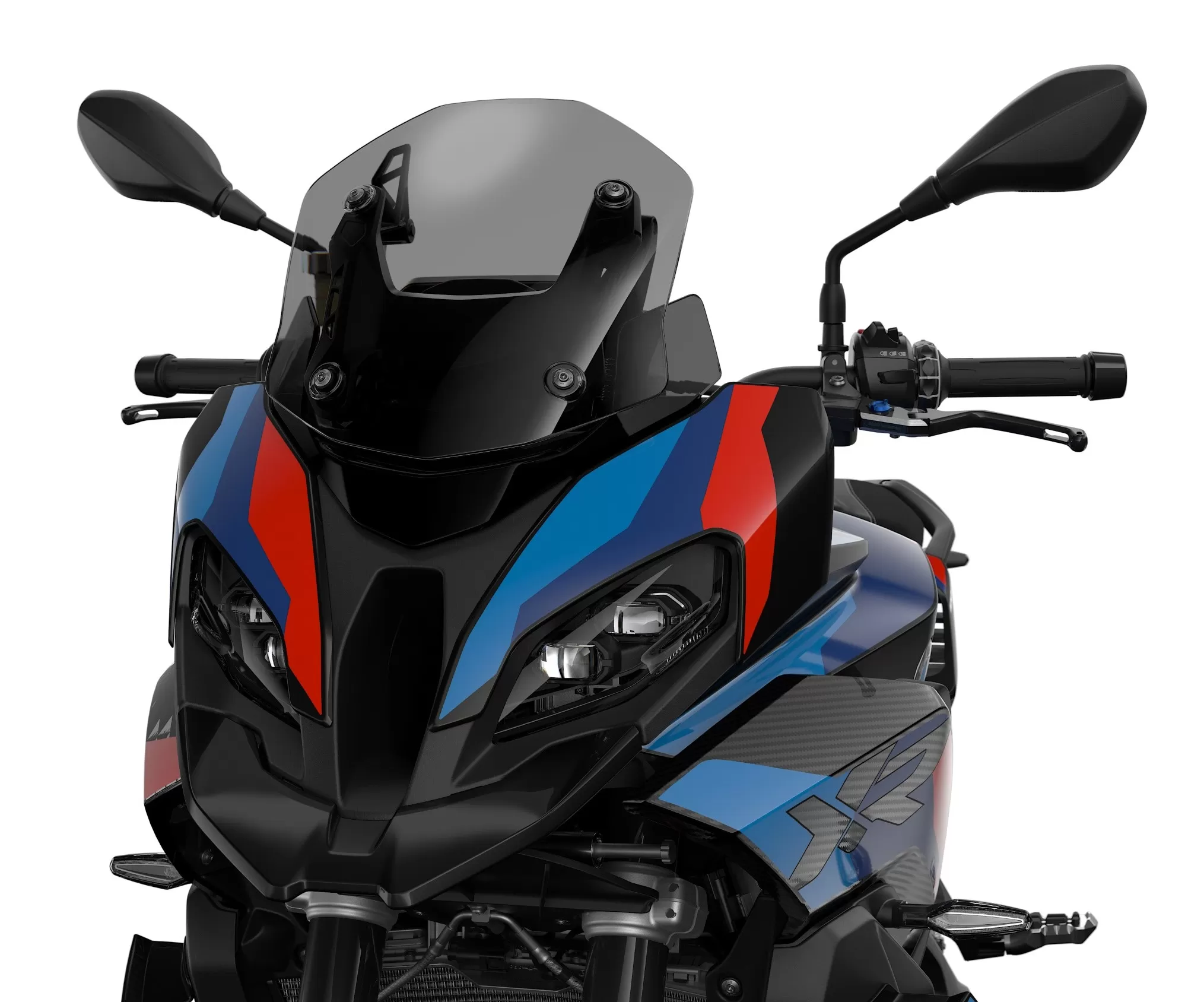

M winglets and wind deflectors: Brake later, reduce wheelies, and accelerate earlier thanks to aerodynamic downforce.

In addition to drive and suspension technology, aerodynamics was also a key item in the specifications for developing the M XR. The new M XR was given winglets in the area of the front side panels with the aim of achieving even faster lap times on the race track and the best possible riding stability at high speeds, From a speed of about 100 km/h, they provide an increase in front wheel load thanks to the aerodynamic downforce generated. It increases by approx. 12 kg at 220 km/h.

Chassis trimmed for performance-oriented riding on country roads and race tracks with Dynamic Damping Control (DDC), adjustable spring base, adjustable steering damper, milled-over handlebar clamp and more front-oriented tubular handlebar with laser-etched "BMW M XR" lettering.

The suspension and chassis of the new M XR are based on the S 1000 XR with the aluminium bridge frame as the centrepiece. The M XR features upside-down forks with a 45 mm slide tube diameter at the front. The forks are equipped with so-called
closed cartridge inserts, separate hydraulic piston-cylinder systems. Another new feature of the M XR is the additional adjustability of the fork's spring base in conjunction with the standard Dynamic Damping Control (DDC) suspension strut.

In addition, the forks of the M XR feature an upper fork bridge with an elaborately milled-over handlebar clamp as well as a more front-oriented black aluminium tubular handlebar with lasered "BMW M 1000 XR" lettering. The handlebar end mirrors available as an option ex works are also new on the M XR. The fork legs have also been modified and are now designed to accommodate the new M brake callipers. Another new element of the
M XR is the adjustable steering damper.

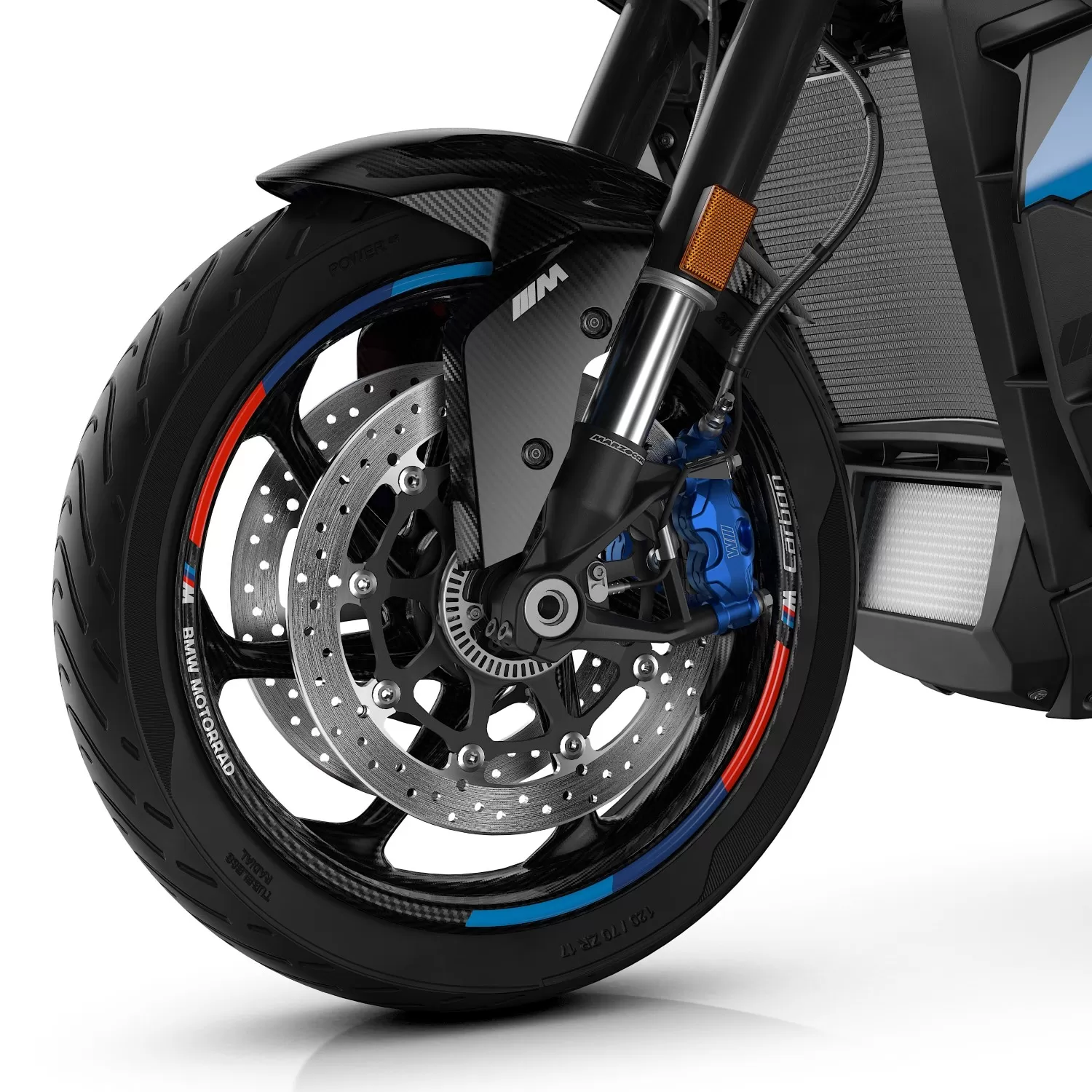

M brakes with radial hand brake pump and lightweight forged aluminium wheels for optimum riding dynamics on the race track and in performance mode. Exclusive M Carbon wheels are available as part of the M Competition package or as an individual option.

After the M 1000 RR and the M 1000 R, the new M XR is the third BMW motorcycle to feature an M brake. It was developed directly using the experience gained with the racing brakes on BMW Motorrad factory racing machines in the Superbike World Championship. The M brake callipers feature a blue anodised coating in conjunction with the famous
M logo.

Together with two 320 mm brake discs of 5 mm thickness and black anodised aluminium brake disc carriers, the brake system equipped with a new radial hand brake pump currently marks the pinnacle of brake development in the field of road-legal systems. The new M XR is already equipped with very lightweight forged aluminium wheels as standard. As part of the M Competition package, the exclusive M Carbon wheels are available with newly designed tapes on the rim.

Brake Slide Assist - assists the rider when brake drifting.

The Brake Slide Assist function is an important and very helpful innovation, especially for race track riders. It allows the rider to brake drift into corners with a constant slide.

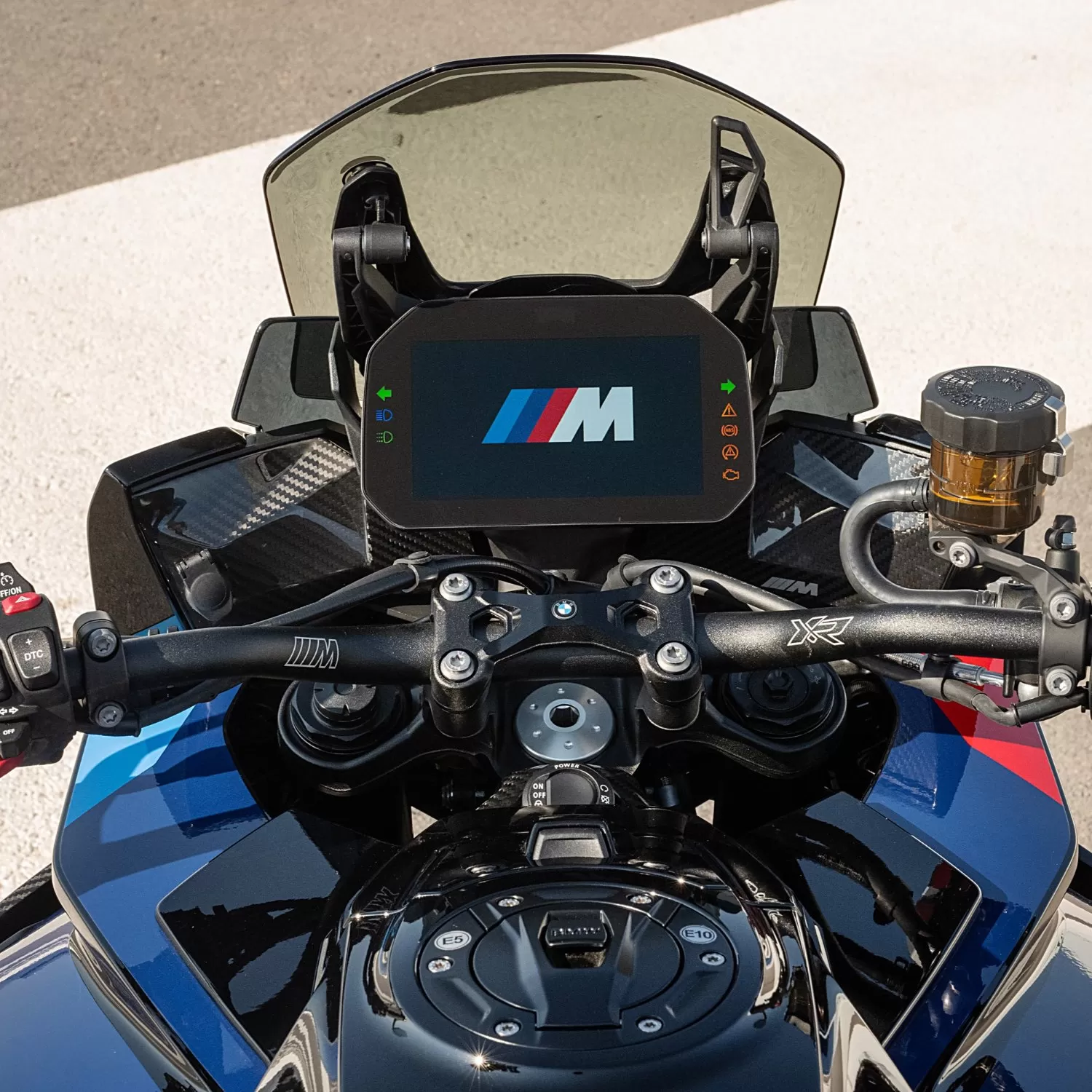

Instrument cluster with perfectly readable 6.5-inch TFT display, new display of the rev counter (red area) and OBD interface for M GPS Datalogger and M GPS Laptrigger that can be used via unlock code.

The instrument cluster of the new M XR corresponds to the design of the M RR and also offers the M start-up animation. The extended display of the red speed range is a new feature. As optional equipment, comprehensive data material for using the M GPS Laptrigger and the M GPS Datalogger (Original BMW Motorrad Accessories) can be provided by means of an unlock code via the OBD interface of the instrument cluster.

M Design and the dynamic design of the M XR signal pure performance and sportiness.

Even more than the S 1000 XR, the new M XR with its optimised chassis technology and the most powerful engine to date in a dynamic long-distance sports bike from BMW Motorrad is uncompromisingly designed for sporty riding - whether on country roads, long-distance tours or on the race track.  M XR - there is currently no better performing and lighter vehicle in this crossover segment.  The proportions of the M XR are ultra-compact and powerful.  Three-dimensional surfaces create excitement and a dynamic look.  Slim, sleek and extremely aggressive, the M XR's front end is unmistakable with its new M winglets, designed as quadruple wings.  The performance-oriented look of the new M XR is also reflected in the colour concept, with the body in Black combined with the M colours Light Blue, Dark Blue and Red.

Uncompromising design and technology: The M XR featuring the M Competition Package.

If the new M XR in standard trim is still not enough for you, the M Competition Package offers a fascinating mix of refined components for the racing technology gourmet and the aesthetically minded rider alike. In addition, this makes the new M XR another 3 kg lighter. The M Competition Package includes M Carbon wheels, M Carbon parts such as rear wheel cover with integrated chain guard, side panels, front wheel cover, inner cover and ignition/steering lock cover as well as a fully adjustable M rider footrest system, passenger footrests and the MGPS Laptrigger (unlock code).
